MINI-PS-100-240AC/2X15DC/1
11

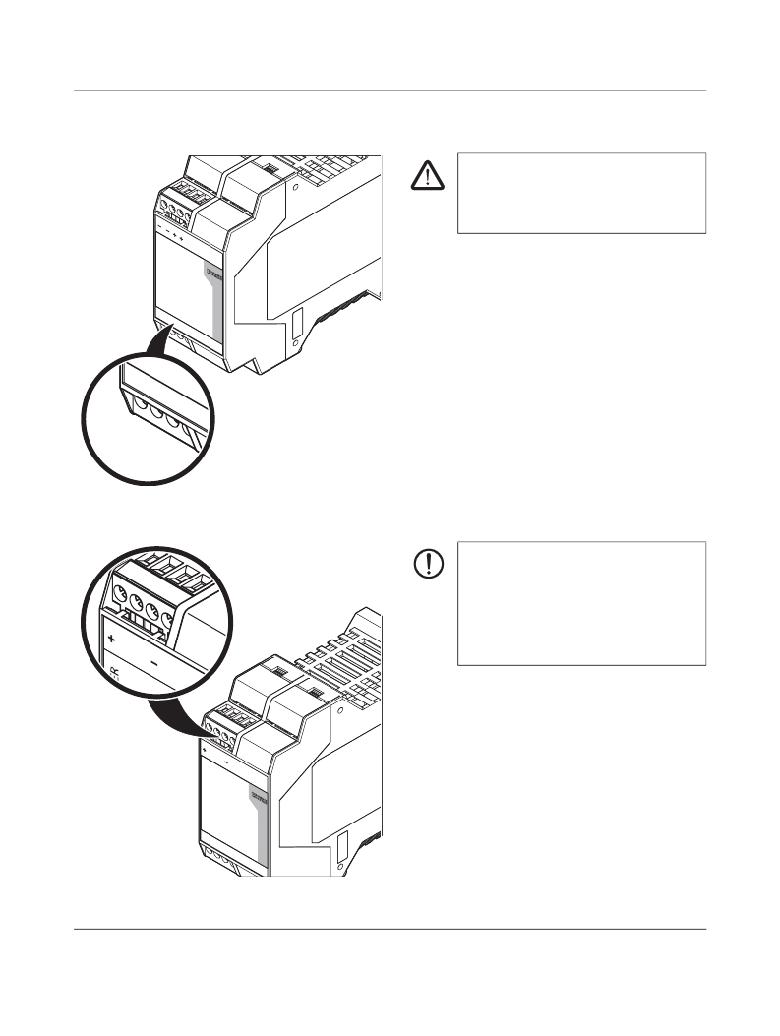

Input
ATTENTION: Module can become
damaged
If an internal fuse is triggered, there is a device
malfunction. In this case, the device must be
DC
2A K
OU
T
DC
24
V
O
inspected in the factory.
The 100 ... 240 V AC connection is established using the L
and N screw connections.
Protection of the primary side
L ( 100-2
NC 40 V
NC AC
L( 1 -
+) 0 24
NC AC
N(
IN
IN
+)
0
NC 0 V
N( -)
-)
The device must be installed in acc. with the regulations as in
EN 60950. It must be possible to disconnect the device using
a suitable isolating facility outside the power supply.
The primary side line protection, for example, is suitable. For
device protection, there is an internal fuse. Additional device
protection is not necessary.
Permissible backup fuse for mains protection
Power circuit-breaker 6 A, 10 A or 16 A, characteristic B (or
identical function).
In DC applications, a suitable fuse must be connected.
12
Output
ATTENTION: Module can become
damaged
Make sure that all output lines are dimensioned
according to the maximum output current or are
separately protected. The cables on the
secondary side must have sufficiently large
0V
OU
T
0V
±1
5V
DC
cross sections in order to keep the voltage
drops on the lines as low as possible.
Connection is made using the "+" and "-" screw connections
on the screw connection of the DC output.
Protection of the secondary side
The device is electronically short-circuit-proof and idling-
0V
5V
OU
T
0V
±1
DC
proof. In the event of an error, the output voltage is limited to
L ( 1 0-2
+)
NC 4 V
NC AC
a maximum of 17 V DC.
IN
0
0
N( -)
100299_en_04
PHOENIX CONTACT
10
